An Epson RX690 resetter is specialized software that communicates directly with the printer’s internal memory and control systems, and its main purpose is to clean the Waste Ink Pad counter found in the Epson Stylus Photo RX690 printer.
The resetter works by accessing the printer’s EEPROM (Electrically Erasable Programmable Read-Only Memory), where the device stores various operational data, including ink level counters, waste ink pad counters, and service mode flags. By modifying these values, the resetter can resolve error conditions and restore normal printer operation.
Below, we will provide you with a guide on how to use the Epson RX690 Resetter, as well as where you can download the resetter file.
Table of Contents
- Benefits of a Resetter
- What is a Waste Ink Pad Counter?
- How to Use Epson RX690 Resetter
- Download Epson RX690 Resetter Here
Benefits of a Resetter
Epson printers, including the Epson Stylus Photo RX690, have a built-in counter that estimates the amount of waste ink absorbed by the pad. Once this pre-defined limit is reached, the printer stops working to prevent potential ink leakage that could occur from a completely saturated pad. The resetter utility tells the printer that the pad has been serviced or replaced, clearing the error and allowing you to continue printing.
It’s crucial to understand that the resetter software itself doesn’t physically clean or replace the waste ink pad; it only resets the software counter. Using the resetter without addressing the physical pad can lead to ink overflow and serious internal damage to your printer.
What is a Waste Ink Pad Counter?
Epson Stylus Photo RX690 printers perform automatic cleaning cycles to maintain printhead health. These cycles flush a small amount of ink through the nozzles to prevent them from clogging. The ink that is purged during this process is not deposited on the paper; instead, it is diverted to a small absorbent pad located inside the printer. This is the waste ink pad.
Every time a cleaning cycle runs, the printer’s firmware logs how much ink it estimates has been absorbed. The counter is a preventative measure. Epson’s official stance is that once the pad is full, the entire printer unit should be serviced or replaced by a certified technician. For consumers, this is often more expensive than buying a new printer. The resetter utility provides a DIY solution to bypass this built-in obsolescence feature, extending the usable life of the printer at a fraction of the cost.
How to Use Epson RX690 Resetter
1. Before you use the Epson RX960 Resetter, it is advisable to temporarily disable your antivirus. Then make sure the printer is connected with a USB cable to the computer you will use for the reset.
2. After that, you can download the Epson RX690 Resetter through the link provided below this article.
3. After the resetter file is downloaded, please extract the file by right-clicking on the file and then selecting Extract All.

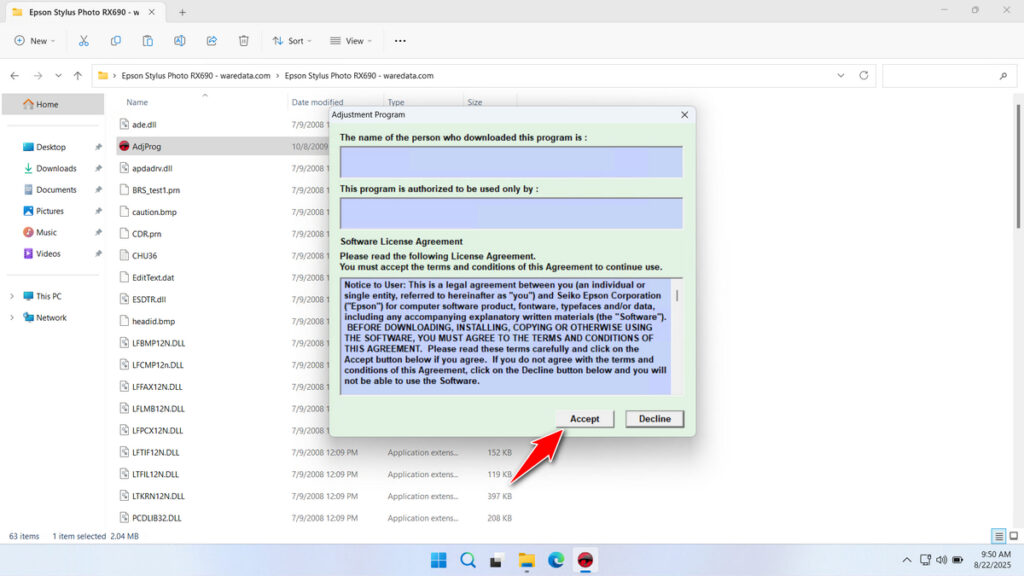

4. After extracting, open the extracted folder and run the AdjProg.exe file. After the application window appears, click Accept.

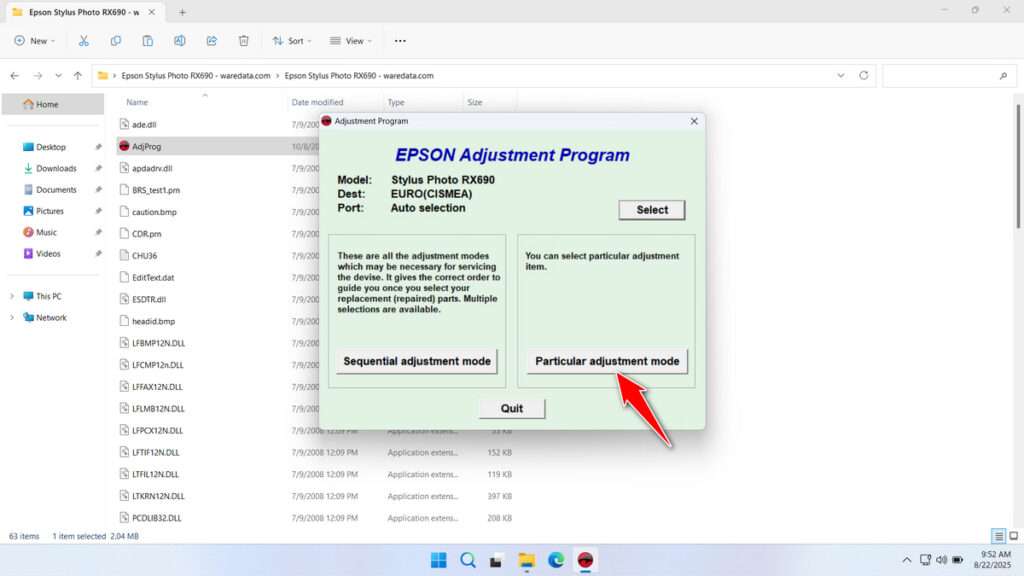

5. Continue by clicking on the Particular adjustment mode.

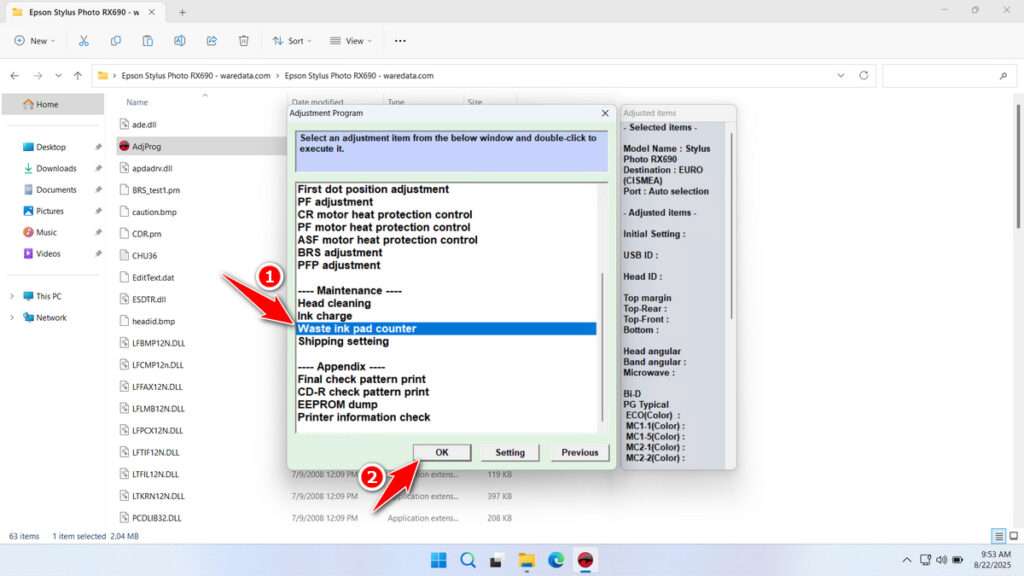

6. Select the Waste ink pad counter and then click OK.

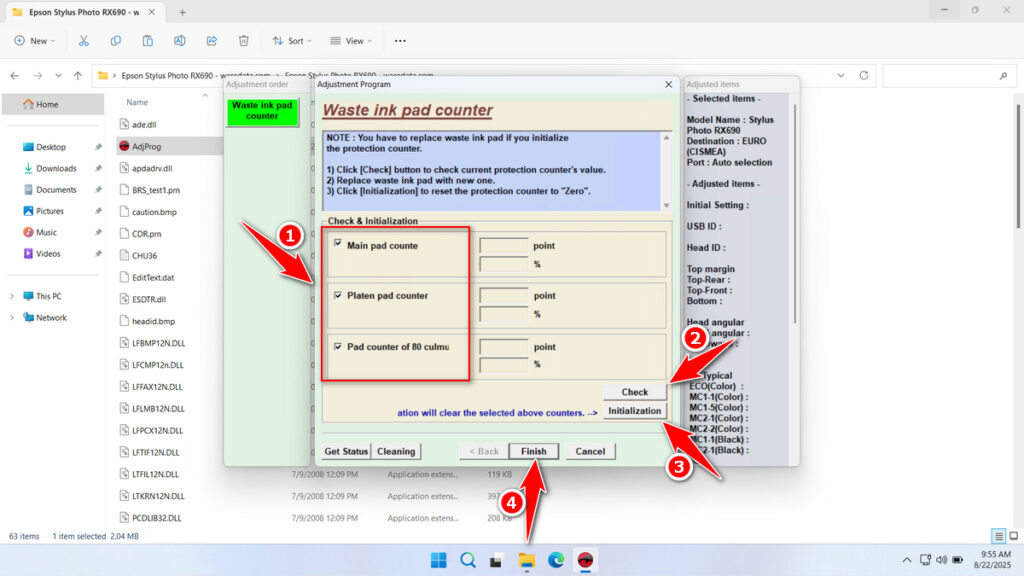

7. Tick the Main Pad Counter, Platen Pad Counter, and Pad Counter of 80 Column. After that, click the Check button, then continue by clicking the Initialization button. After the reset is successful, click Finish. Then immediately turn off the printer, and you can turn the printer back on afterward.
8. If the reset fails, try moving the printer’s USB cable to another available port on your computer. Then repeat the reset process.
Download Epson RX690 Resetter Here
The primary risk of resetting is that without physically checking or replacing the waste ink pad before, if the pad is truly saturated, ink can leak onto your printer’s internal components, circuits, and even your desk, causing permanent damage. The safest option is to have an authorized Epson service center replace the waste ink pad and reset the counter for you. This is the recommended course of action, but also the most expensive.
If you understand how to use the Epson RX690 Resetter, then you will be able to use the resetter software to the fullest. For those who need the Epson RX690 Resetter, you can download it through the following link.
File Size: 3.34
File Type: .ZIP
OS Support: Windows 7/8/10/11 or higher
